Ulanqab now is represented by these tags:
Big DATA
Cloud Computing
Artificial Intelligence
"Grassland Cloud Valley"
The Ulanqabqahar Development Zone boasts a superior geographical location, stable geological plates, abundant power resources, suitable cold climate and proximity to the core market of the Beijing-Tianjin-Hebei economic circle, rendering it an optimal site for national-level cloud computing industry development. The city of Ulanqab, with its focus on the overarching goal of "Data Ulanqab, serving Beijing and Tianjin, and storing China," actively fosters the development of the information industry. It seizes upon cloud computing and the big data industry as opportunities for a new wave of scientific and technological revolution, facilitating breakthroughs in industrial transformation and upgrading. In doing so, it aims to establish Ulanqab's urban industry as a prominent symbol in the new era.
Project Background
Reliable, Efficient and Simple----
The assistance of Huawei has significantly propelled Ulanqab's progress in informatization.
The city of Ulanqab has enhanced its collaboration with Huawei to establish an information industry demonstration park, where Huawei takes the lead, within the Chahar Economic and Technological Development Zone. As Huawei's largest cloud service data center in North China, the Ulanqab Huawei Cloud Data Center will facilitate the development of cloud computing demonstration applications such as the Ulanqab Smart City Cloud platform and education cloud platform. It will also disrupt traditional business models, enable deep integration of data interoperability and sharing for government applications, and drive forward the advancement of government and enterprise informatization.
Hoogovens® has the honor to participate in the engineering construction of Huawei Cloud Data Center project in Ulanqab, and "build" the "grassland cloud valley" to provide the necessary infrastructure for the development of cloud computing industry.
Q:
This project has very high requirements for waterproof and indoor anti-condensation. Why did Huawei trust Hoogovens to do the roofing task of the data center?
Q:
How does Hoogovens manufacture metal roof that meets the high quality standards of public buildings and satisfies its customers?
Now let's take a walk on the beautiful prairie and learn more about the details of the project.
Project overview
Project: Ulanqab Huawei Cloud Data Center
Roof area: 8600 square meters/building, a total of 5 buildings
Product type: Hoogovens® H65/400
Roof features
The roof area of Huawei Cloud Data Center in Ulanqab is 8,600 square meters per building.
The project adopts a traditional portal steel frame system with a double-sloped roof, which is not particularly challenging in terms of structural design. However, the location of the project in Ulanqab presents unique challenges due to its inland position and exposure to the dry and cold Mongolian high-pressure system, resulting in extremely low temperatures. The average temperature ranges from 0 to 6 °C. Winters are characterized by cold and prolonged conditions, with average temperatures dropping below -15 °C. Consequently, the project necessitates stringent requirements for the waterproofing, thermal insulation, anti-condensation, and wind-resistant capabilities of the metal roofing system.
According to the characteristics and high requirements of the project, the professional design team of Hoogovens proposed a reasonable structure and detailed design.

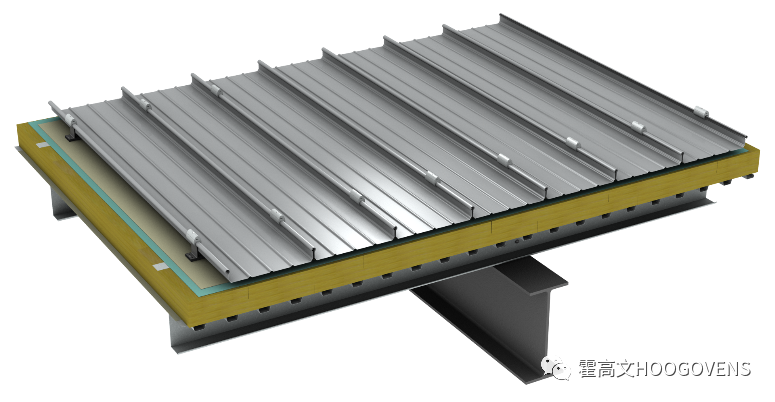

Standard Structure Drawing
Water Resistance
The structure incorporates a dual-layer waterproof system consisting of H65/400+TPO, combining rigidity and flexibility. H65 roof panels are manufactured on-site, allowing for customized production based on the specific project requirements. This eliminates the need for panel overlaps, minimizing the risk of water leakage. Additionally, the TPO secondary waterproof layer is seamlessly integrated through welded connections to ensure complete roof integrity.
Non-overlapping Roof Panels
TPO Welding
Heat Preservation, Condensation Performance
The structure is made of rock wool insulation and an enhanced composite polypropylene steam insulating film, which are laid using a double-layer staggered joint technique. Additionally, the inside of several beams and secondary purlins have been treated in detail to be filled with insulation rock wool, effectively preventing any loss of insulation. Furthermore, meticulous detail treatment has been implemented to ensure optimal thermal insulation and eliminate cold bridges.
The inside of the secondary purlins is filled with rock wool insulation
In terms of wind resistance, Hoogovens utilizes molding equipment imported from Germany to ensure high precision and stability of products. The seaming machine guarantees the finished state of the product after seaming. Based on design calculations, Hoogovens' design team added clips in the corner area of the roof, ridge, and surrounding areas of holes to strengthen the anti-wind ability.
Details determine success or failure, the reason why Hoogovens can become a benchmarking enterprise in the professional field, in addition to having advanced equipment and excellent technical service team, but also benefit from their own strict product quality inspection standards and strict requirements for details. Committed to providing customers with safe, assured, quality products and services.
Next, let’s take a look at the photos of the construction process!
Construction pictures
Windproof clips installation drawing
Roof ridge construction drawings
Project summary
Through the cooperation of various departments of Hoogovens, the Phase III DC1 roof of Huawei Cloud Data Center in Ulanqab has been completed. The design, materials and construction quality of the finished part have been highly praised by the general contractor and the owner.
The responsibility and wisdom of Hoogovens drive the company to continuously deliver higher quality products and superior service, while relentlessly pursuing excellence.
